The Basis of Electrical Safety: Grounding

In every electrical system, whether in a home, a business, or a large industrial facility, there is a fundamental and often underestimated component that silently ensures our safety and the integrity of our equipment: grounding. Far from being a mere technical formality, grounding is a vital connection that provides a safe path for unwanted electrical currents to dissipate harmlessly underground, protecting lives and property.

The importance of proper grounding installation lies in several fundamental pillars that guarantee the safety and proper functioning of any electrical installation.

1. Protection of Persons: The primary function of grounding is human safety. In the event of an insulation fault in equipment or a short circuit, leakage current will seek the path of least resistance to ground. Without proper grounding, that path could be the body of a person who comes into contact with the faulty device, with potentially fatal consequences. Grounding ensures that this current is safely diverted, drastically minimizing the risk of electrocution.

2. Equipment and Property Protection: Transient surges, whether caused by lightning or power failures, can cause irreparable damage to sensitive electronic equipment. An effective grounding system acts as a shield, channeling this excess energy to the ground before it can "fry" the internal components of our appliances, computers, and industrial machinery. Furthermore, by preventing arc flashes and overheating, it significantly reduces the risk of fires.

3. System Stability and Reliability: A well-grounded electrical system is a stable system. It helps stabilize voltage and provide a common reference point for the entire system, which is essential for the proper functioning of protective devices, such as RCDs. Without a reliable ground reference, these devices may not operate properly when they are most needed.

The effectiveness of a grounding system is quantified by measuring its electrical resistance. This task cannot be performed with a conventional multimeter, as it requires a specialized instrument designed for this purpose.

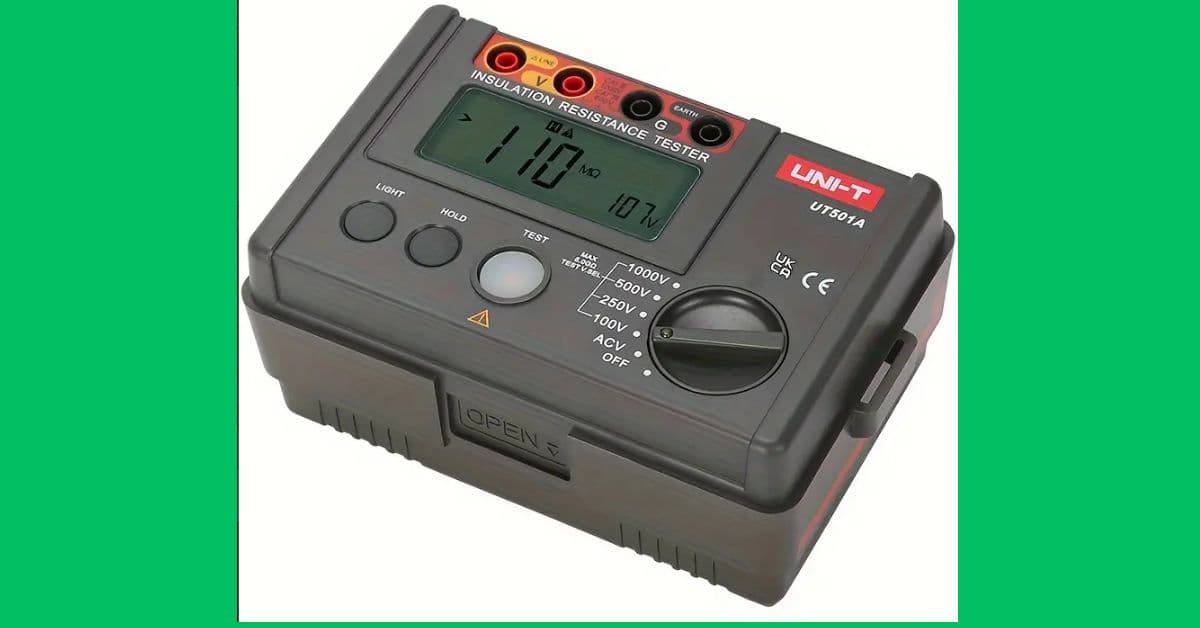

The equipment used to measure the resistance of the physical earth is the tellurometer, also known as an earth resistance meter or ground tester.

The most common and accurate method used by these devices is the "potential drop" method. This procedure involves:

• Disconnect
• temporarily disconnect the grounding electrode (rod, mesh, etc.) from the rest of the installation.
• Drive two auxiliary stakes into the ground at specific distances and in a straight line from the electrode to be measured.
• The tellurometer injects a known alternating current through the farthest spike and the ground electrode.
• Simultaneously, it measures the potential difference (voltage) between the ground electrode and the intermediate rod.
• By applying Ohm's Law (R=V/I), the device calculates and displays the precise value of the grounding system resistance.

There are also more modern clamp-on earth resistance meters that allow measurements to be taken without the need to drive auxiliary rods or disconnect the system, which speeds up routine maintenance checks.

The key question is: what is an acceptable grounding resistance value? The answer varies depending on local regulations and the type of installation, but there are widely accepted general recommendations:

• General Facilities:
• For most residential and commercial installations, a ground resistance value of
• 10 ohms or less
• It is considered excellent and very safe.
• Sensitive Equipment: In locations with highly sensitive electronic equipment, such as data centers, hospitals, or laboratories, an even lower value is recommended, ideally 5 ohms or less.
• Specific Regulations: Some regulations may consider values of up to 25 ohms acceptable for low-voltage systems. However, the technical consensus is clear: the lower the resistance value, the safer and more effective the grounding system.

Ultimately, grounding is not a luxury, but a imperative in any electrical installation. Its proper implementation and periodic maintenance are the first line of defense against serious electrical accidents, ensuring a safer environment for everyone. Failure to verify its condition compromises the safety of people and the durability of our valuable equipment.
